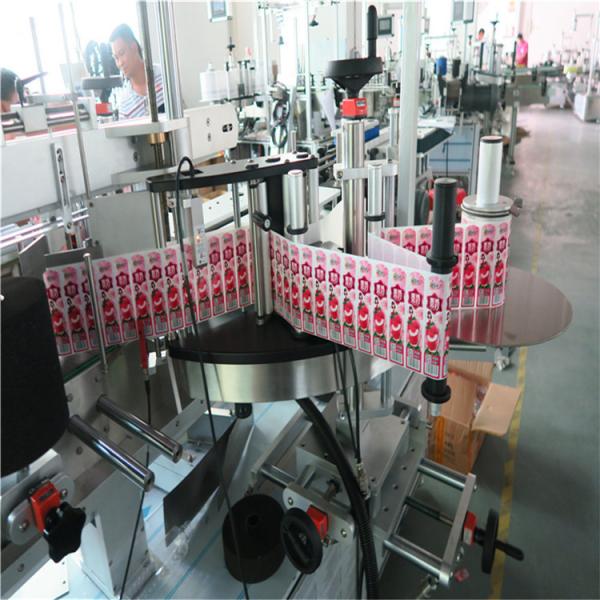

Multifunctional Transparant Automatic Sticker Labeling Machine 0.1L
- 2L Volume Bottle
Product Description
1 , PLC combined with human/machine interface LCD touch screen
controller.
2 , Aluminum and Stainless steel frame construction and components
are standard.
3 , Labeling speed is automatically synchronized with conveyor
speed to ensure quality labeling.
4 , 30 Job Memory for easy recall.
5 , Precision 5 phase Servo motor drive on label heads.
6 , "Push&Press" optional attachment(optional) is used to
ensure smooth labeling without wrinkles or bubbles.
7 , Angle adjustment of labeling head
8 , Tapered products can take advantage of labeling heads angle
adjustability 15 for confirming to the product shape.
9 , With optional,hot foil printer is available
Function
1 , The advanced kind human interface system,on-line helping
system,really human-machine communicating.It is easy to operate so
the worker can operate the machine in several hours.
2 , The Multi-function round bottle labeing machine is application
to label cylinder bottles for daily chemical
,beverages,pharmaceuticals etc.
3 , The range of labels is extended because of high -power serco
motor ,solves the common problem of theinsufficient strength.
4 , The machine adopts the special structure of air driving and
labeling rollers with high labeing accuracy .
5 , Can be choose to label one piece or two pieces.And it can label
the washing hand liquid bottles in front and b ack at the same
time.
6 , The machine is particularly applicatable to circular label
forbig round bottles,high repeat accuracy,without air bladder, with
specia design, no need the structure of separate bottle it makes
the system easier ,higher efficiensy .
7 , Automatically the machine adopts our company palent technology
.The inaccurate labeling is Eliminated largely becase of the
structure of three rollers capable of locating labeing position.
Features
1 , Working Process for Automatic Singel/Double Sides Self-Adhesive
Labeler/Labeling Machine
2 , The product of bottle body separated, the sensor detects the
product passes the signal returned to the labeling control system,
the control system in place to control the motor sends label
affixed to the product subject to labeling and position, product
flow the standard unit cover, covered with standard rotation driven
products, the label is roll coating, a label attached to the action
is completed.
Introduction Of Machine Structure
1 , All feeding label guide bar use heavy whole process, for making
sure every guide bar with the vertical degree, ensure feeding label
is stability.
2 , The machine has the vertical, horizontal of regulatory
agencies,label can be realized position before and after adjustment
for direction, suitable for various products, various position
labeling.
Adopt Japanese Mitsubishi PLC control system,a more stable
performance.
3 , Part of labeling head
Labeling head mainboard:Using 30mm thick aluminum alloy plate , The
whole process of grinding,ensure that plane grinding surface
smoothness.The surface of aluminum alloy anode processing, gush
arenaceous technology, ensure hardness and beautiful.
4 , The bottom of labeling head adopt whole seal structure, to
avoid danger snap.
5 , Head motherboard adopt the most advanced CNC processing center
production, to ensure that each size precision.
6 , Feeding label part use five axis positioning, the max ensure
feeding label process is stability.
Label and feeding label roller nearly 2 / 3 of the contact area,
great avoid label and the roller sliding, improve accuracy of
feeding label.
7 , Feeding label and recover label part use synchronization
skid,avoid the label will been snapped.
Our Advantages
1 , We carry out careful inspection and running and debugging for
each machine before they are delivered to the customers, to ensure
we maintain the highest customer satisfaction of the machine.
Therefore, our company enjoys high level of business credit among
our customers in the industry for our high quality of machines
delivered.
2 , Also, we have professional engneers who ensures correct
manufacturing for the machines according to designs and if the
customer needs, they will provide professional after sales service.
3 , Our company has many experienced and professional designers who
can provide customized designs of machines for your products
according to your requirements.
4 , Our professional workers are with at least five years of
machine production experience, who help to manufacture high quality
of machines for your products.
5 , If the client needs customized design of machines for your
products, please kindly inform us your material viscosity, power
voltage, the speed you require, the size of your vessels, etc. We
sincerely welcome your inquiry and visit.
6 , We provide excellent after sales service for each customer
whenever the customer has any question with the machine. And even
after they have bought the machines for many years, we still
provide necessary help for the machine to run normally.
Packaging & Shipping
1 , The machine is packed in wooden case, all the machines should
be coated before sealed in the wooden or iron case to make sure
they are damp-proof and shock-proof.
2 , We provide detailed installation videos for the machine, and
also we provide the training video for the machine operation as
well as the Instruction Manual, machine specifications and other
relate files to the customers.
3 , We also help the customers to clear the customs and provide
them the custom with proforma invoice.
Technical Parameters
Production speed | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 190mm |
Bottle diameter | 30-100mm |
Label inner diameter | 76.2mm |
Label outer diameter | Max330mm |
Outline size | L2000×W700×1400mm |
Air source | 4-6KG 30L/MIn |
Using power | 220V 50HZ 1200W |
Bottles
